Standard Frames

Metaltech > Exterior Scaffolding > Frames > Standard Frames > W-style frame 61″ X 60″

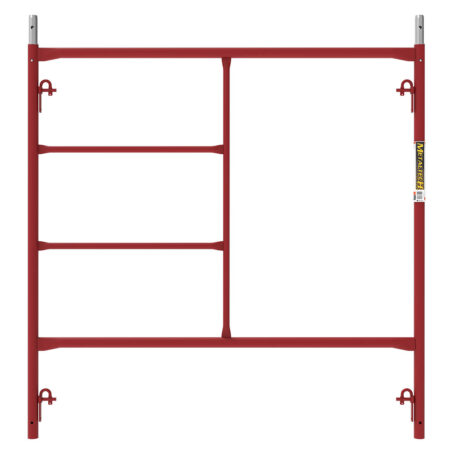

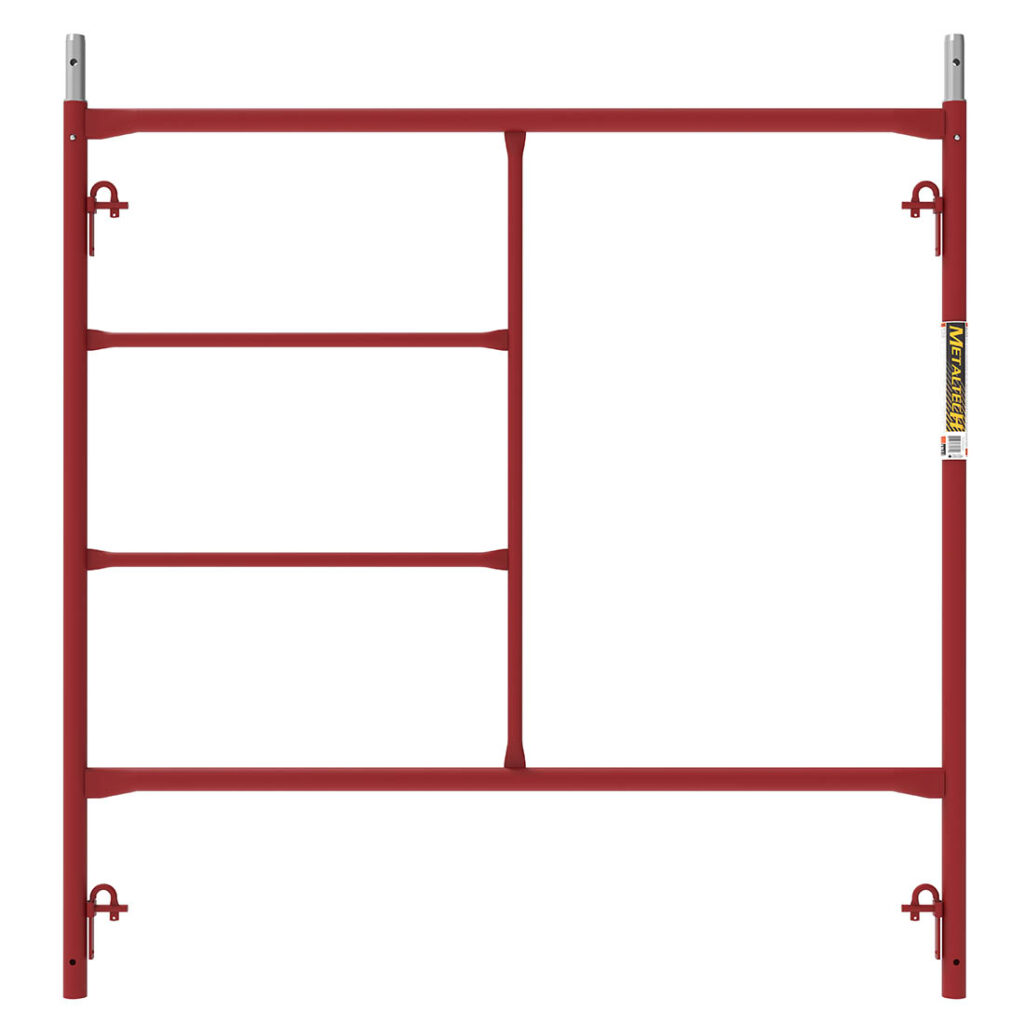

W-style frame 61″ X 60″

Model: M-MF6160AULRDPS

🇺🇸 Product only available in the USA.
Product specifications

Dimensions

61 X 60 IN. (155 X 152 CM)

Capacity

4466 LB (2025.78 KG)*

Lock spacing

48 IN. (121.9 CM)

Weight

38.6 LB (17.5 KG)

Interior tubes

OUTSIDE DIAMETER 1 IN. - 16 GAUGE

Perimeter tubes

OUTSIDE DIAMETER 1.625 IN. - 13 GAUGE

Finish

POWDER COATED

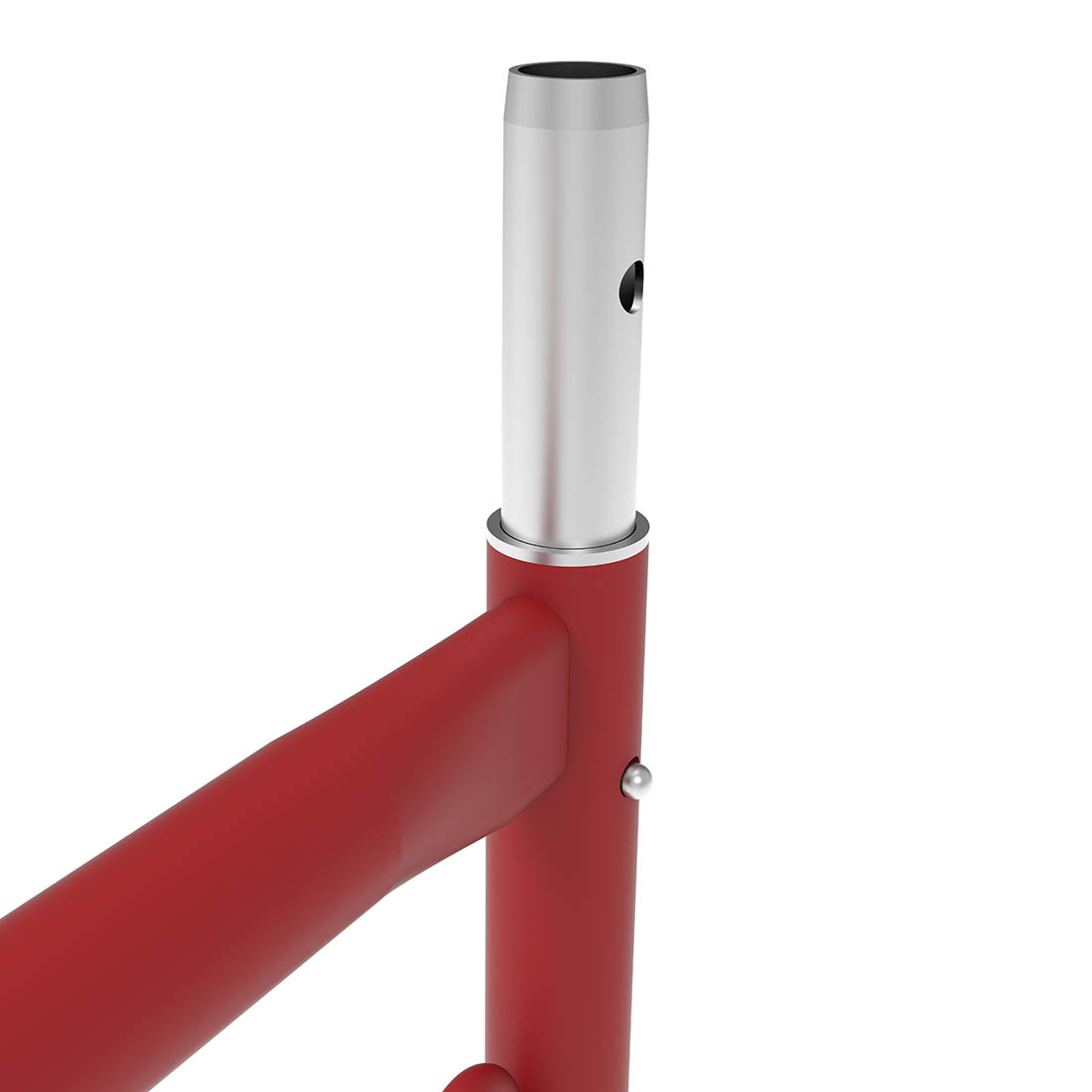

Coupling pin

SPRING-LOCK

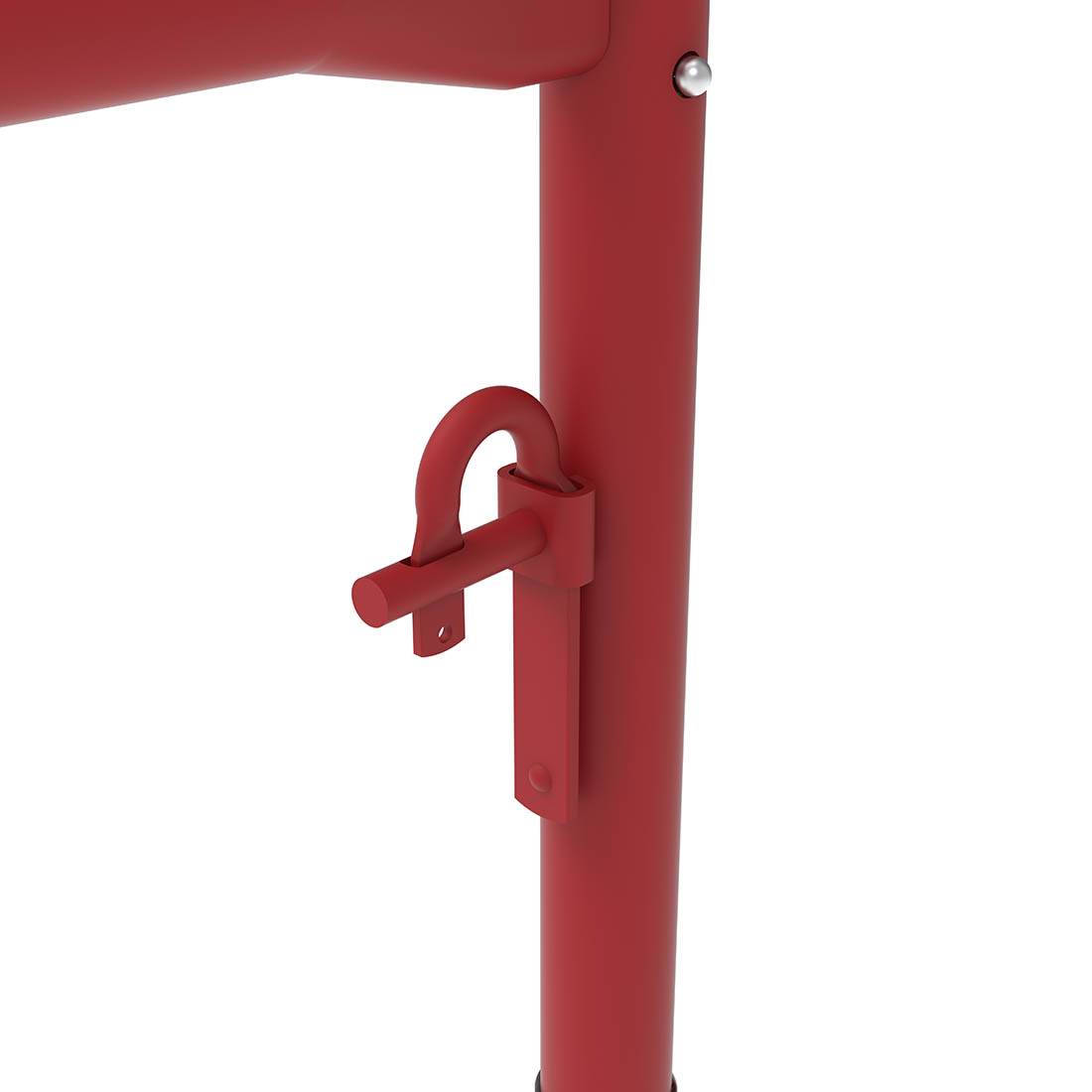

Frame lock

U-LOCK

Standards

ANSI AND OSHA
*The stated capacity is based on the buckling of the frame’s vertical posts. The maximum load must always comply with the most limiting component of the system.

OSHA



ANSI



Saferstack


Frame lock choice
c-lock

C-lock

f-lock

F-lock

gravity_lock

Gravity lock

t-lock

T-lock

u-lock

U-lock

v-lock

V-lock

k-lock

K-lock
