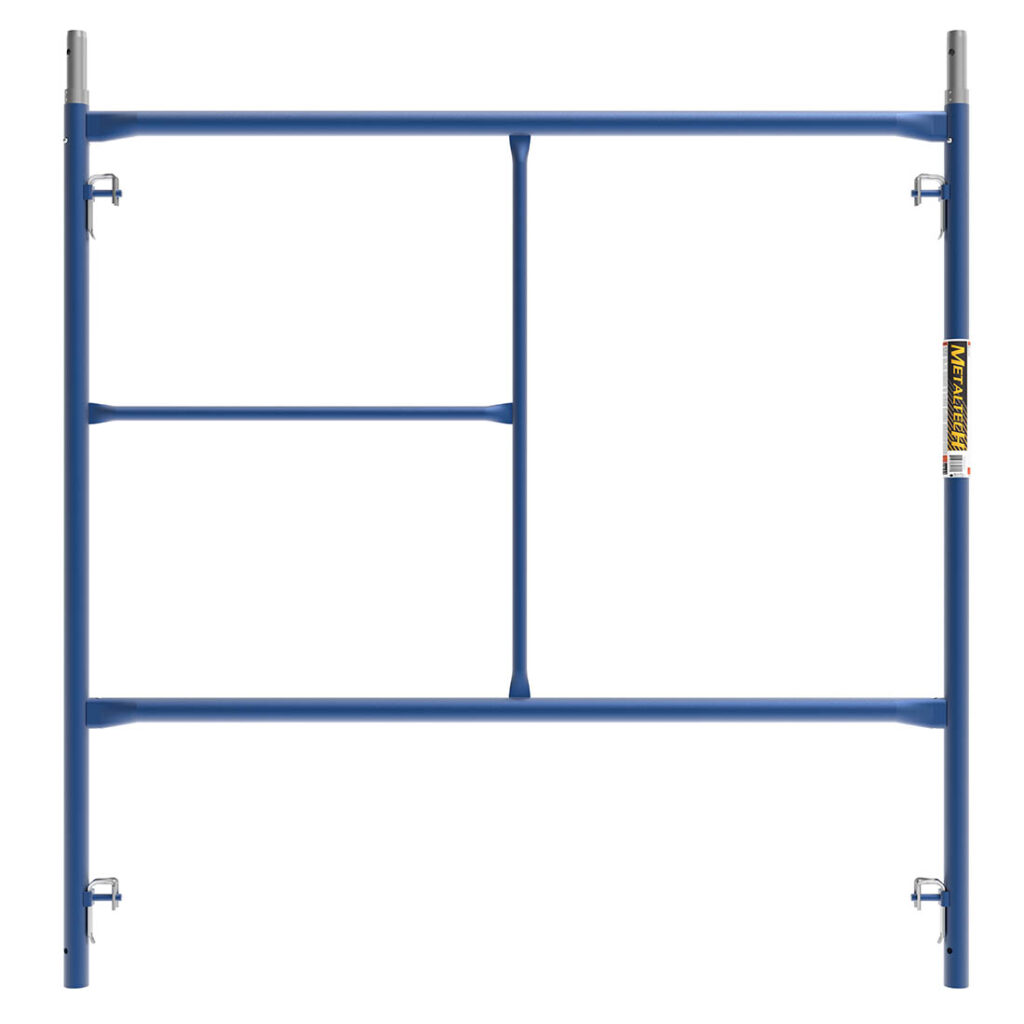

V-style frame 60″ X 60″

Model: M-MF6060VLV1PS

🇺🇸 Product only available in the USA.
Product specifications

Dimensions

60 X 60 IN. (152 X 152 CM)

Capacity

5126 LB (2325.15 KG)*

Lock spacing

48 IN. (121.9 CM)

Weight

39.1 LB (17.7 KG)

Interior tubes

OUTSIDE DIAMETER 1 IN. - 16 GAUGE

Perimeter tubes

OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE

Finish

POWDER COATED

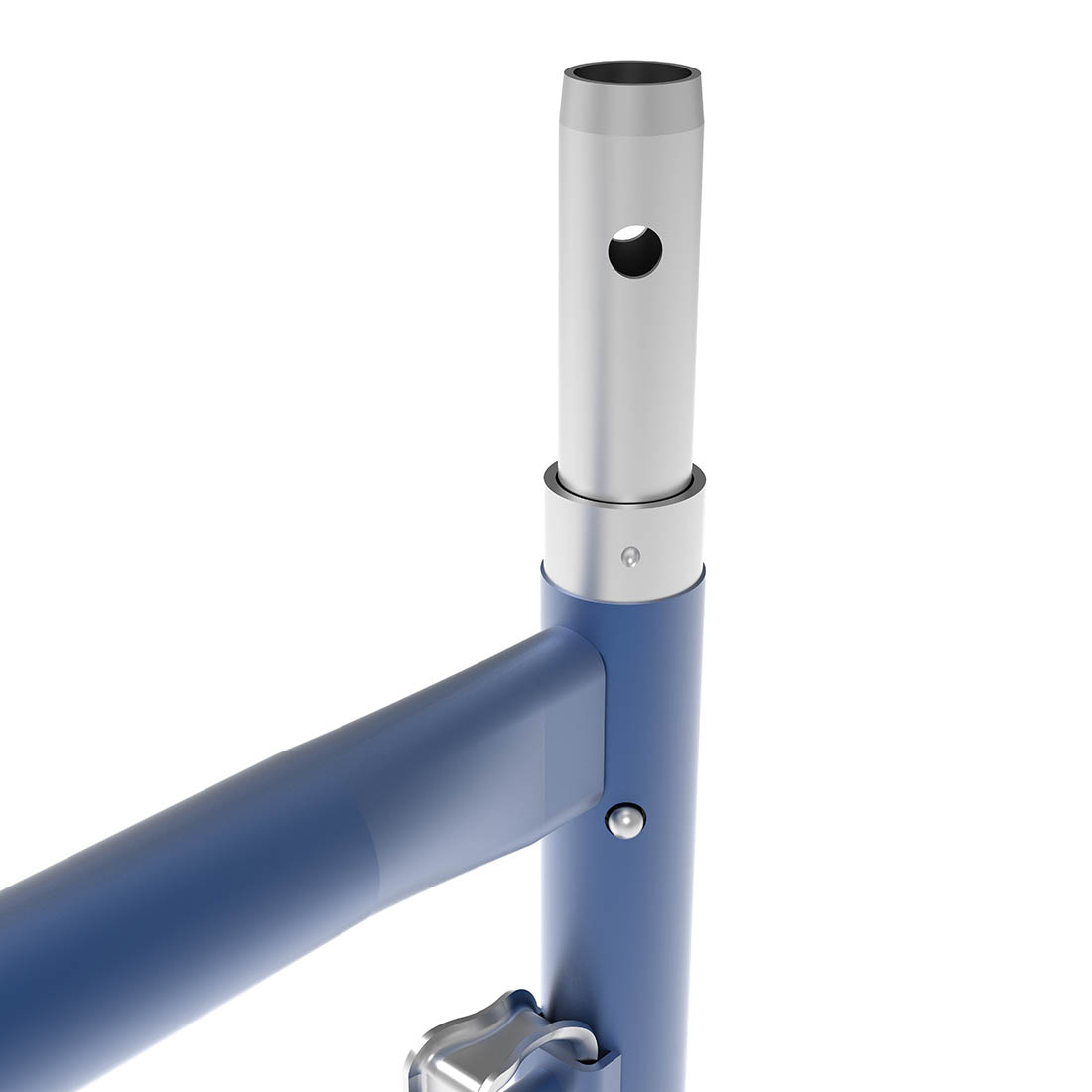

Coupling pin

SPRING-LOCK

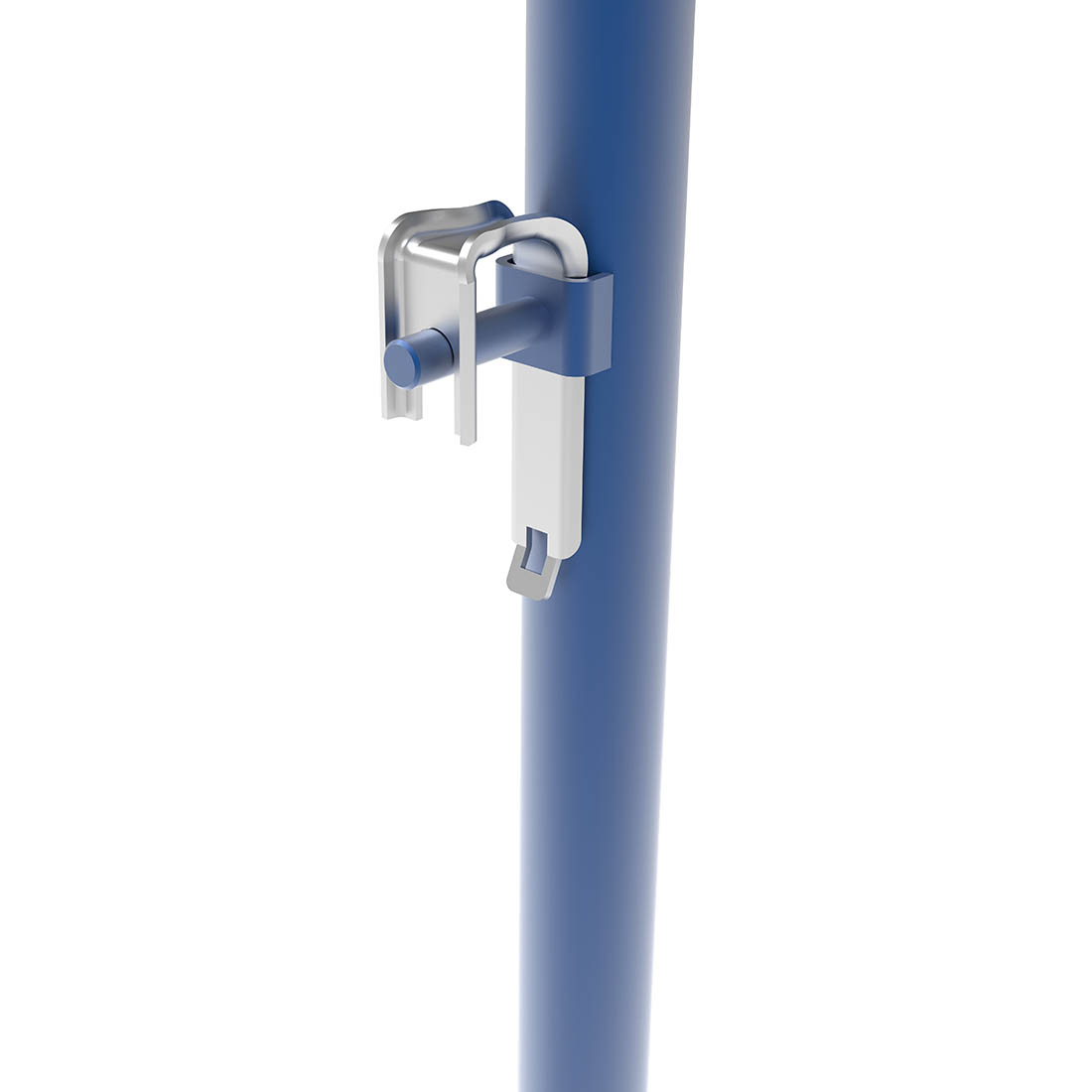

Frame lock

V-LOCK

Standards

ANSI, OSHA
*The stated capacity is based on the buckling of the frame’s vertical posts. The maximum load must always comply with the most limiting component of the system.

OSHA



ANSI



Saferstack


Frame lock choice
c-lock

C-lock

f-lock

F-lock

gravity_lock

Gravity lock

t-lock

T-lock

u-lock

U-lock

v-lock

V-lock

k-lock

K-lock
