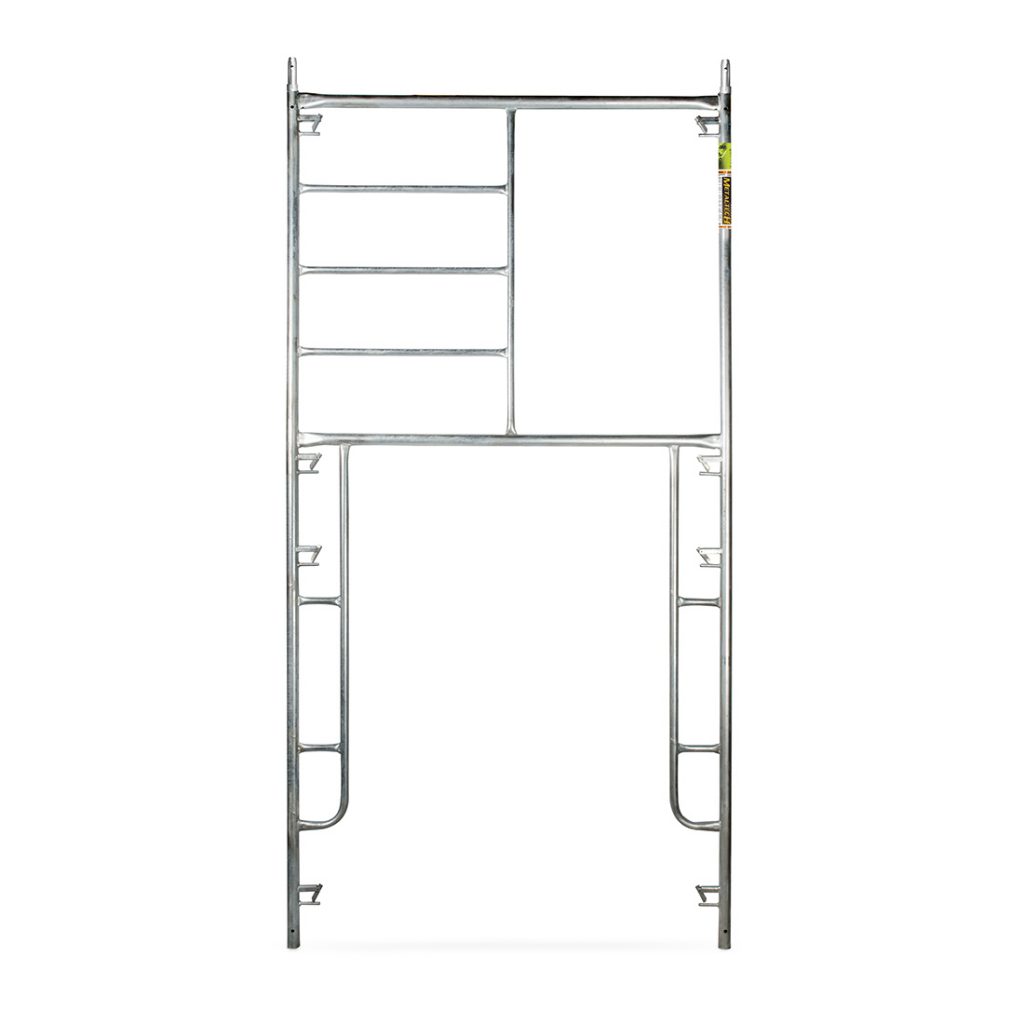

Starting arch frame 121″ X 60″

Model: M-MA12160DEGVPS UPC: 778300950195

Product specifications

Dimensions

121" X 60"

Capacity

1634 lb (741.17 kg)

Lock spacing

N/A

Weight

66.9 LB

Interior tubes

OUTSIDE DIAMETER 1.25 IN. - 16 GAUGE

Perimeter tubes

OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE

Finish

GALVANIZED

Coupling pin

SPRING-LOCK

Frame lock

GRAVITY-LOCK

Standards

ANSI, CSA AND OSHA
*The stated capacity is based on the buckling of the frame’s vertical posts. The maximum load must always comply with the most limiting component of the system.
