Standard Frames

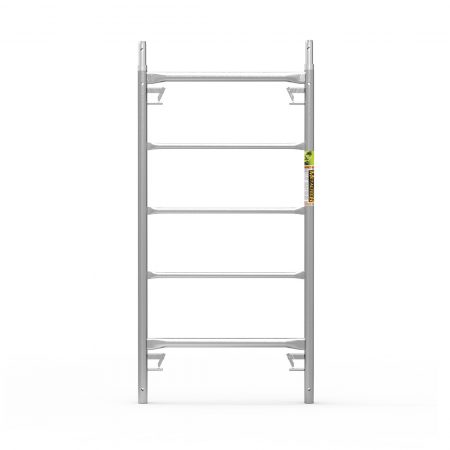

Standard frame 60” X 30”
Model: M-MF6030GVPS
UPC: 778300801534
Product specifications
Dimensions
60” X 30”Capacity
5126 lb (2325.11 kg)Lock spacing
48 IN.Weight
31.8 LBInterior tubes
OUTSIDE DIAMETER 1 IN. - 16 GAUGEPerimeter tubes
OUTSIDE DIAMETER 1.69 IN. - 13 GAUGEFinish
GALVANIZEDCoupling pin
SPRING-LOCKFrame lock
GRAVITY-LOCKStandards
ANSI, CSA AND OSHA*The stated capacity is based on the buckling of the frame’s vertical posts. The maximum load must always comply with the most limiting component of the system.
Frame lock choice
C-lock
F-lock
Gravity lock
T-lock
U-lock
V-lock
K-lock
