Standard Frames

Metaltech > Exterior Scaffolding > Frames > Standard Frames > 5 ft H Scaffold Frame – Adjustable Length from 36″ to 60″

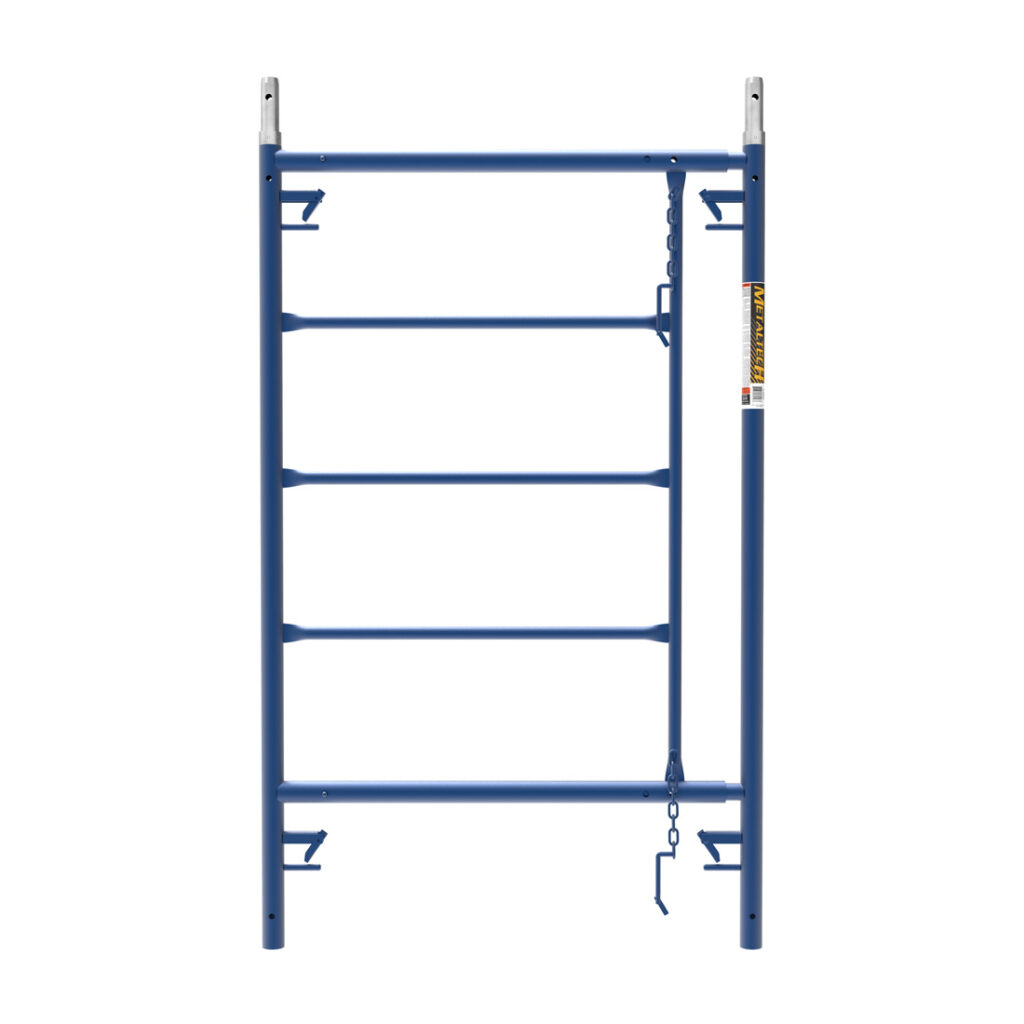

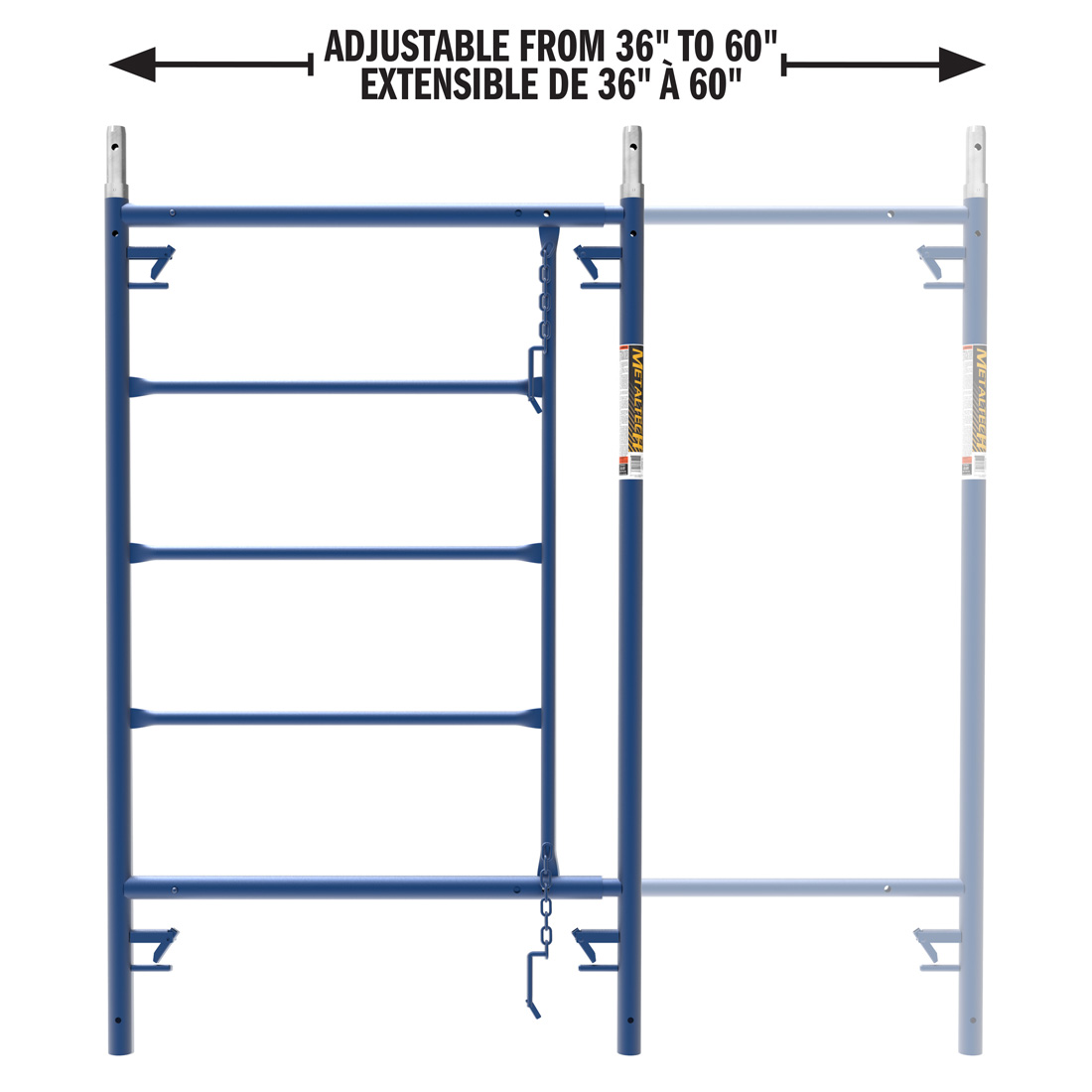

5 ft H Scaffold Frame – Adjustable Length from 36″ to 60″

Model: M-MF60EPS UPC: 778300805563

play video Video
Product specifications

Dimensions

60" X 36"/60" (ADJUSTABLE FRAME)

Capacity

5126 lb (2325.11 kg)

Lock spacing

48 IN.

Weight

49.8 LB

Interior tubes

OUTSIDE DIAMETER 1 IN. - 16 GAUGE

Perimeter tubes

OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE

Finish

POWDER COATED

Coupling pin

SPRING-LOCK

Frame lock

GRAVITY-LOCK

Standards

ANSI, CSA AND OSHA
*The stated capacity is based on the buckling of the frame’s vertical posts. The maximum load must always comply with the most limiting component of the system.
Product links

Instructions manual

Sell-sheet

CSA



OSHA



ANSI


Frame lock choice
c-lock

C-lock

f-lock

F-lock

gravity_lock

Gravity lock

t-lock

T-lock

u-lock

U-lock

v-lock

V-lock

k-lock

K-lock
